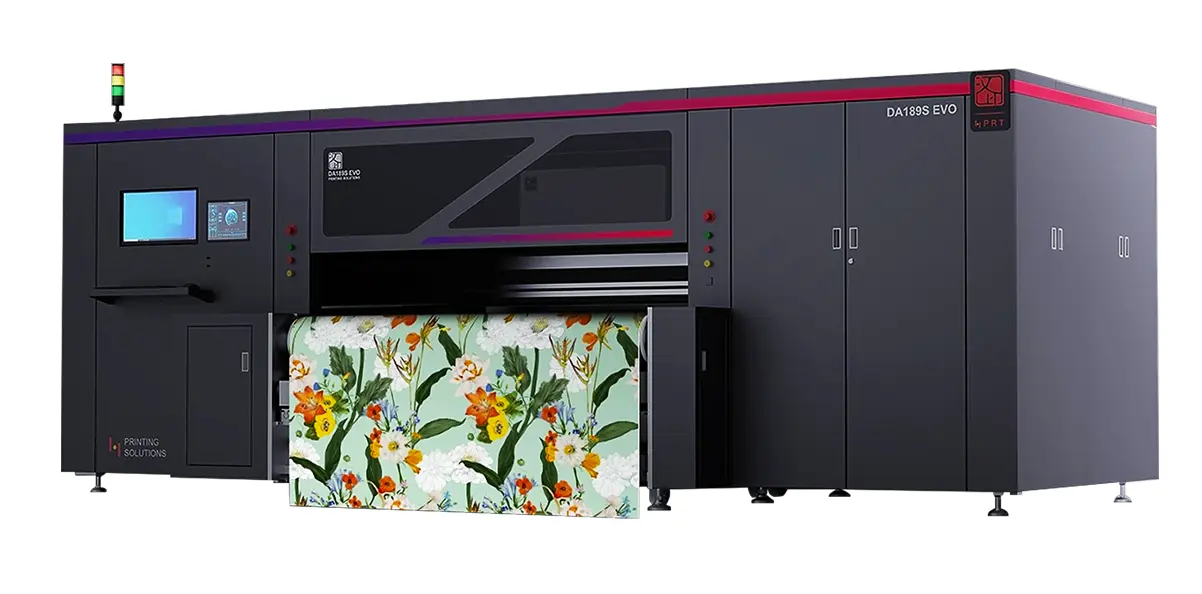

DA189S EVO
HD quality for high-speed, diverse fabric printing needs 960㎡/h | 1850mm Print Width | 32 Kyocera Print Heads | 4,800 DPI. For cotton, linen, silk, nylon, polyester, blended, elastic fabrics and new fiber woven and knitted fabrics
High-speed Conveying-belt Direct to Fabric Digital Textile Printer-HPRT DA189S EVO Series
32Kyocera industrial print heads,up to 960 ㎡ /h capacity
High efficiency, low cost and high precision create excellent printing quality, and the cost-effective operation meets the needs of rapid printing and high-end customized design.
Features:
- High speed and stable performance: race againts time to increase the productivity
- High-defefinition printing: Superb Imaging is Everything
- Cost-saving by intelligence: Energy-efficient Design, Ingenuity Hided Everywhere
Application:
High speed and stable performance: race against time to increase the productivity
DA189S EVO series printer, with industrial high-speed Kyocera print head, maximizes printhead capacity through the special combination and control system, so that you can handle a large number of orders easily.
High-definition printing: Superb Imaging is Everything
DA189S EVO series printer, through unique drive design and ink supply system design, it can use: acid ink,reactive ink, high-tem perature disperse ink, water-based pigment ink and other ink consumables, keep print details clear , realistic and evocative.
Cost-saving by Intelligence: Energy-efficient Design, Ingenuity Hided Everywhere
Integrated environment and nozzles temperature stability man agement system. High-precision nozzles calibration and com pensation system. High-compatibility distribution system, high-efficiency belt cleaning system. High-stability nozzles mois turizing and cleaning system. Simple and effective operation, ensure the efficiency of the machine.
Perfect detail experience
The cloth feeding operation is simple and the cloth surface flattening effect is good
Superelevation detection of cloth in different areas, perfect protection of nozzle
High degree of automation, simple operation, one-key cleaning and one-key moisturizing
Modular design, convenient and simple maintenance of all parts
Make full use of machine space without redundancy
Quick and convenient ink replacing
Specifications
| Model | DA189S EVO |
| Name | High-speed Conveying-belt Direct to Fabric Digital Textile Printer |
| Print head | Kyocera Print heads 32 pcs |
| Max. Print Width (mm) | 1850 |
| Max. Cloth Width (mm) | 1900 |
| Maximum Allowable Roll Diameter of Rewinding Cloth Feed Holder (mm) | Φ 500 |
| Maximum Allowable Weight of Rewinding Cloth Feed Holder (kg) | 100 |
| Maximum Allowable Roll Diameter of External Cloth Feed Holder A (mm) | Φ1600 (external fabric placer is optional). Supports fabric placement with fabric trolley |
| Printing Speed（㎡/hr) (Multiple modes available) |
High speed mode 2 @508*600dpi|1pass: 960 High speed mode 3 @600*600dpi|1pass: 816 Quality mode 1 @400*1200dpi|2pass: 560 Quality mode 2 @508*1200dpi|2pass: 480 Quality mode 3 @600*1200dpi|2pass: 408 Precision mode 1 @400*1800dpi|3pass: 373 Precision mode 2 @508*1800dpi|3pass: 320 Precision mode 3 @600*1800dpi|3pass: 272 High precision mode 1 @600*2400dpi|4pass: 204 High precision mode 2 @600*3600dpi|6pass: 136 High precision mode 3 @600*4800dpi|8pass: 102 |
| Ink Color | C, M, Y, K, OR, R, B, G, P, GR, Lk, Lm, Lc, FM, FY |
| Ink Type | Reactive ink, Acid ink, Pigment ink, High energy disperse ink |
| Print Media | Cotton, linen, silk, nylon, polyester, blended, Print media elastic fabrics and new fiber woven and knitted fabrics |
| Supported Image Type | JPG / TIFF / BMP / Other |
| RIP System | HPRT PRINT, Neostampa (optional) |
| Dimensions: L*W*H (mm) | 5342*2900*1917 |
| Weight (kg) | 5000 |
| Power Consumption (Kw) | Printer ≦ 10 |
| Power Supply | Printer: AC380V | three-phase five wire system | 20A (40KW) | 50Hz/60Hz |
| Compressed Air Supply | 0.6MPa | 1m³/hr (Dry, no oil or water vapor) |
| Operating Temperature | 20~30ËšC |
| Operating Humidity | 45%-75% (Non-condensing) |
| Drying Option | Electric heating / steam heating / natural gas heating and other drying rooms |
| Certification | OEKO-TEX AATCC,CE |
