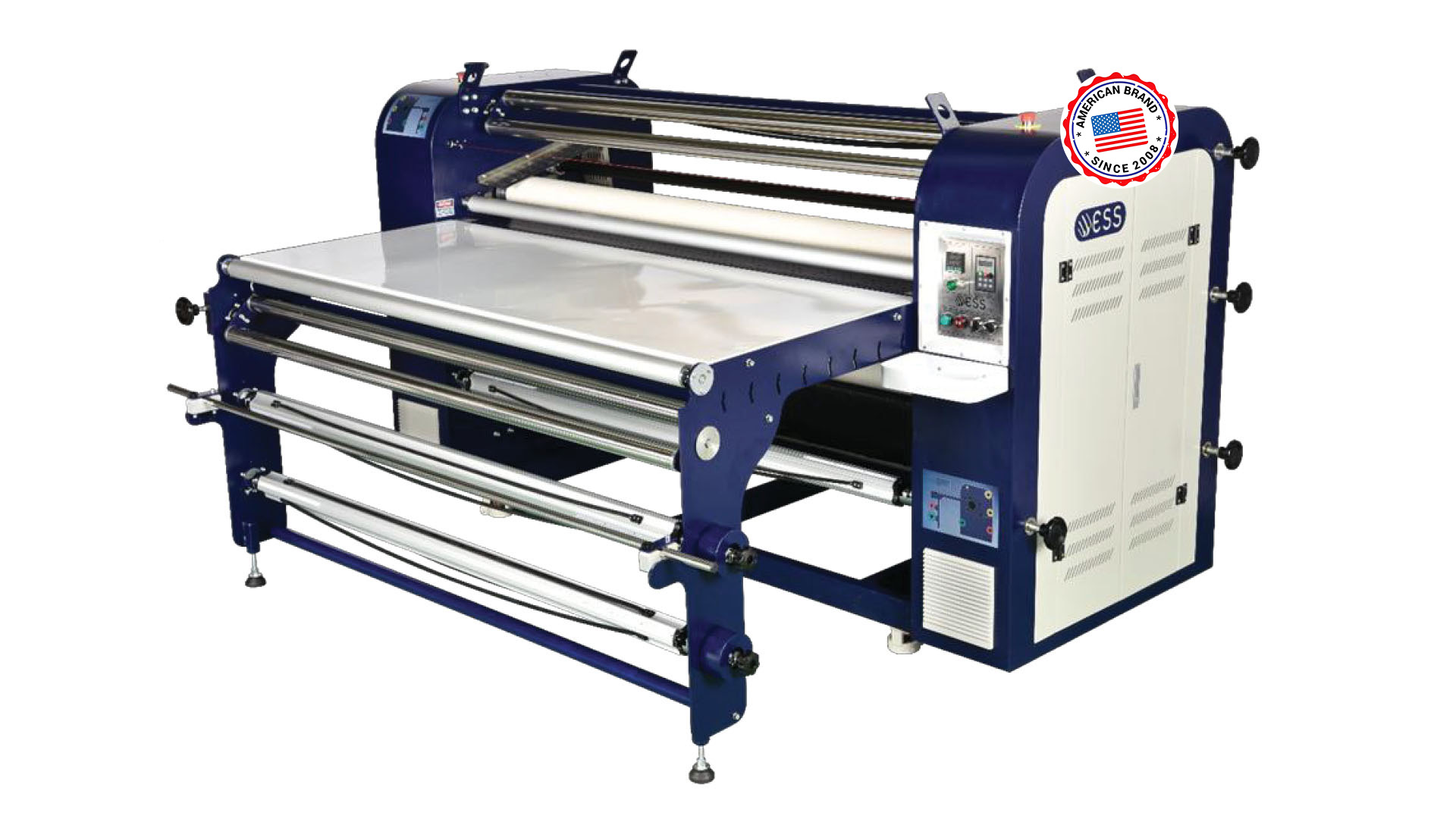

HOTA HTO 220-1700 Plus

A robust and flexible solution for roll-to-roll and piece-by-piece applications, HT Series rotary heat transfer machines are designed for the textile industry. This series comes in a variety of configurations, with drum diameters ranging from 9 to 17 inches and a large transfer area of 67 to 87 inches. Featuring a PLC and optional touch screen, this advanced calibration system provides comfort, security, and energy efficiency.

It is prepared to ensure continuous production in the sublimation line.

  • Automation of daily work through the on-o scheduling system.
  • Steel cylinder with Teon surface to prevent rust and maintain uniform temperature.
  • Eective, advanced and economical heating system.
  • Industrial heating system with thermal oil.
  • LCD touch screen.
  • Password to enter special options on the LCD panel.
  • Sublimated fabric meter counter, congured from the LCD panel with the option to reset the value.
  • Speed controller for cylinder rotation through PLC.
  • Machine controlled by PLC, SIEMENS brand.
  • PLC-programmable digital temperature controller.
  • Automatic blanket position correction system controlled by PLC.
  • The additional tension roller for the blanket is driven by a pneumatic system controlled by the PLC.
  • Pneumatic tensioning system for sublimation paper controlled by PLC.
  • Oil level indicator to ensure the amount of oil in the cylinder.
  • Independent control system on each roller to collect the used material.
  • Designed for continuous roll sublimation and item sublimation.
  • Option to change the rotation in the cylinder movement.
  • Blanket protection alarm through limit sensors.
  • Emergency stop device.
  • Five tension rollers for the blanket. One of the rollers is driven by a pneumatic system and controlled by PLC.
  • Work table for item-to-item applications.
  • Air system for protection paper.
  • Electrical protection system for power outages.
  • Cover to add smoke extractor. (Optional with additional charge)
h

Specifications

Model HTO 220 – 1700 Plus
Transfer width 1700 mm
Cylinder diameter 220 mm
Productivity 0.1 – 2.5 M / Min
Principle of heating Conductive oil heating
Transfer mechanism Preasure – bearing
Start time 45 min
Net weight 900 kg
Gross weight 950 kg
Power 7 KW 380V (3 Pass)
Transfer temperature 180 – 230 degree
  Display Sistem (Options)
  With automatic alignment system
*Untuk keperluan pengembangan, spesifikasi dapat berubah sewaktu-waktu.
