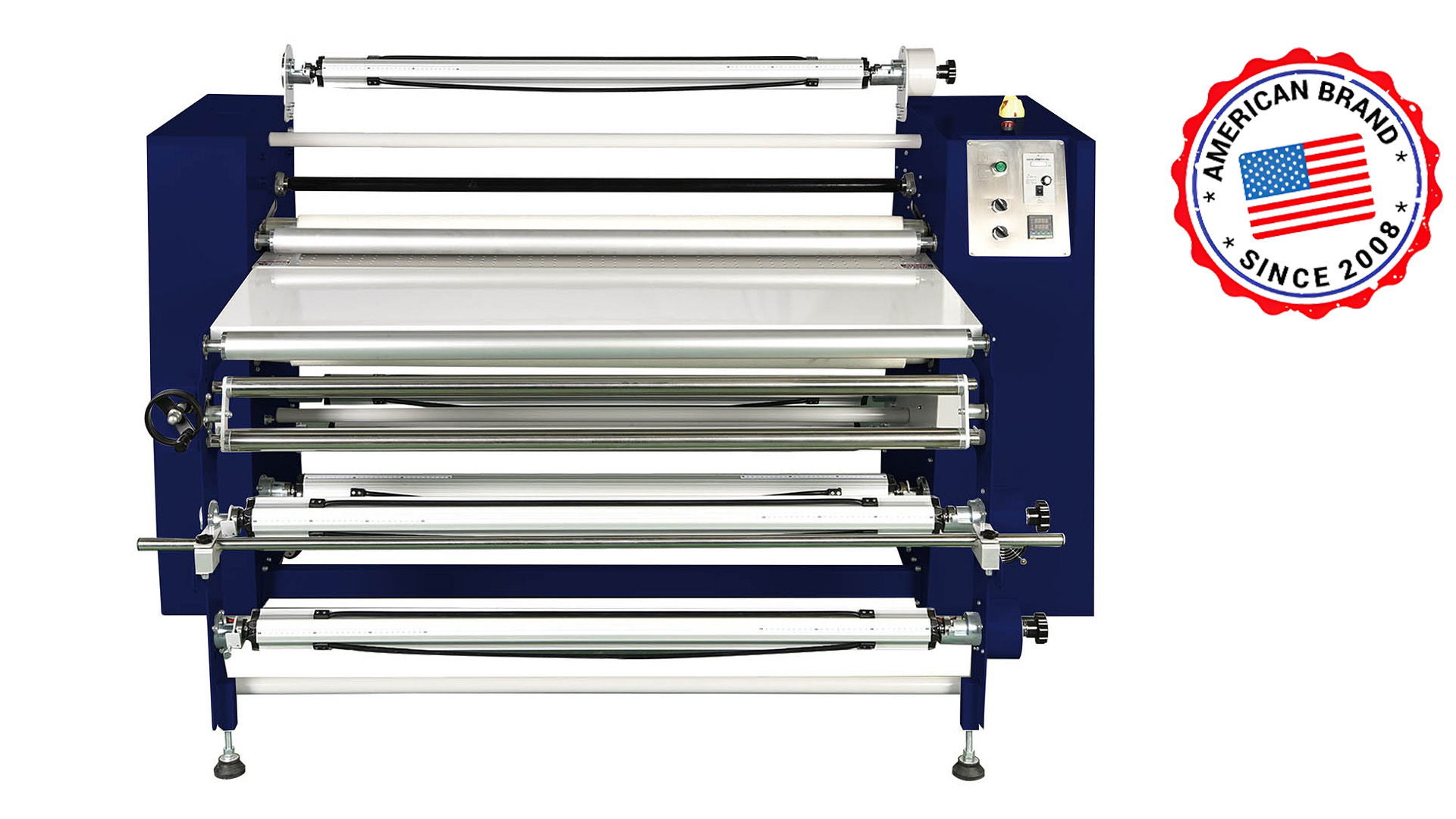

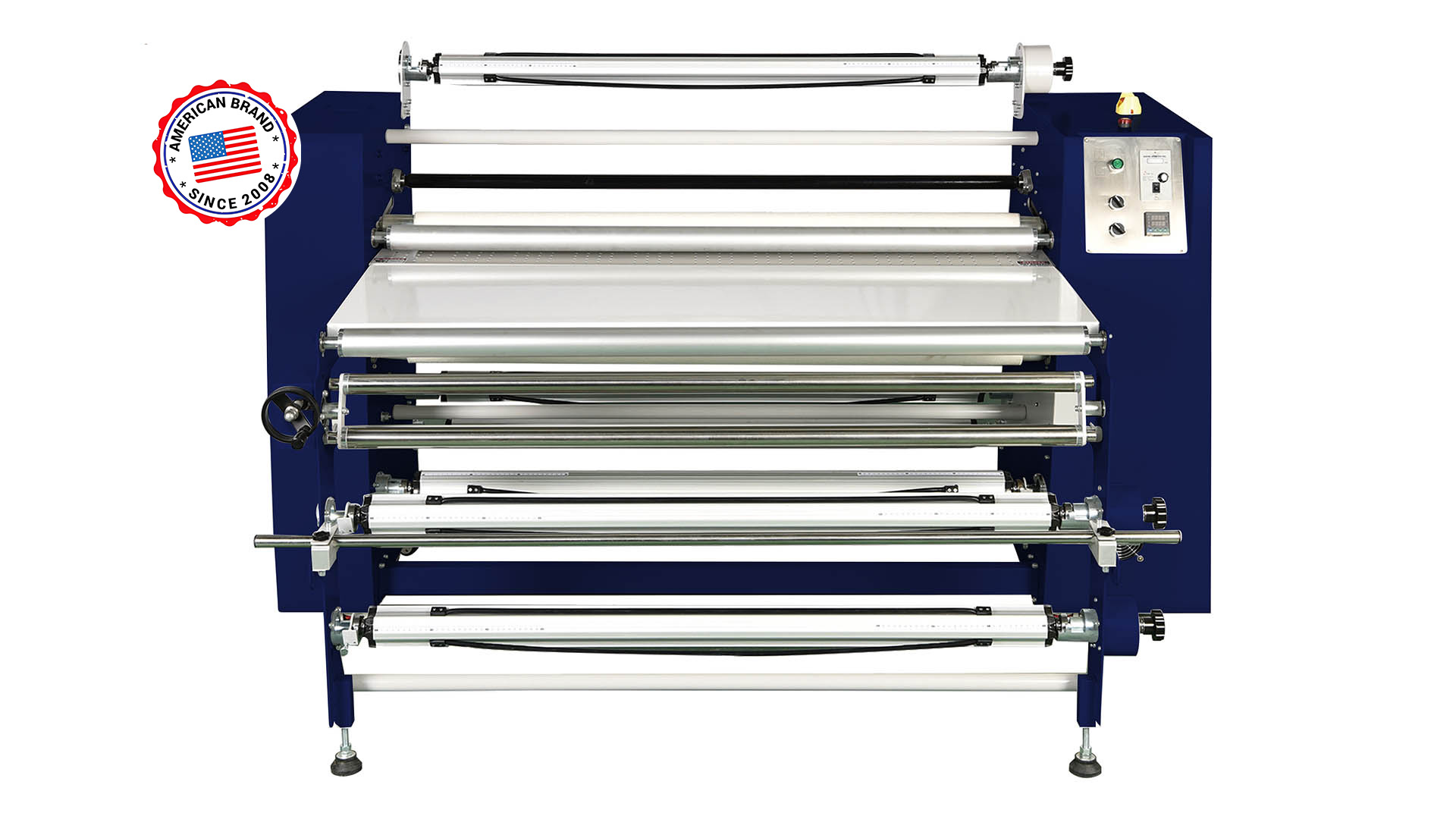

HOTA HTO 180-1200 Plus
HOTA rotary heat transfer machines are designed for piece-by-piece or roll-to-roll operation. In shops with limited space, the HS series is ideal. With the HTO series, you can expect the highest level of fabrication quality. With a 7-inch drum, the HTO series features an automatic blanket calibration.
It is the most convenient way to enter the sublimation market.
- Steel cylinder with a textured surface to prevent oxidation and maintain a uniform temperature.
- Efficient, advanced and economical heating system.
- Industrial heating system with thermal oil.
- Speed controller for cylinder rotation.
- Oil level indicator to ensure the amount of oil in the cylinder.
- Option of changing the rotation of the cylinder.
- 4 tension rollers for the blanket.
- Air tension system for printed paper.
- The blanket protection alarm is activated through limit sensors.
- Digital temperature controller.
- Automatic rollers to collect used material.
- Designed for continuous roll sublimation and piece sublimation.
- Semi-automatic blanket position correction system.
- Emergency stop device.
- Worktable for part-to-part applications.
Application:
Kimono
Leggings
Dresses
Flags
Skirts
Jackets
Specifications
| Model | HTO 180 – 1200 Plus |
| Transfer width | 1200 mm |
| Cylinder diameter | 180 mm |
| Productivity | 0.1 – 2 M / Min |
| Principle of heating | Conductive oil heating |
| Transfer mechanism | Preasure – bearing |
| Start time | 45 min |
| Net weight | 500 kg |
| Gross weight | 550 kg |
| Power | 4 KW 220V (1 Pass) |
| Transfer temperature | 180 – 230 degree |
| With manual alignment system |
*Untuk keperluan pengembangan, spesifikasi dapat berubah sewaktu-waktu.
