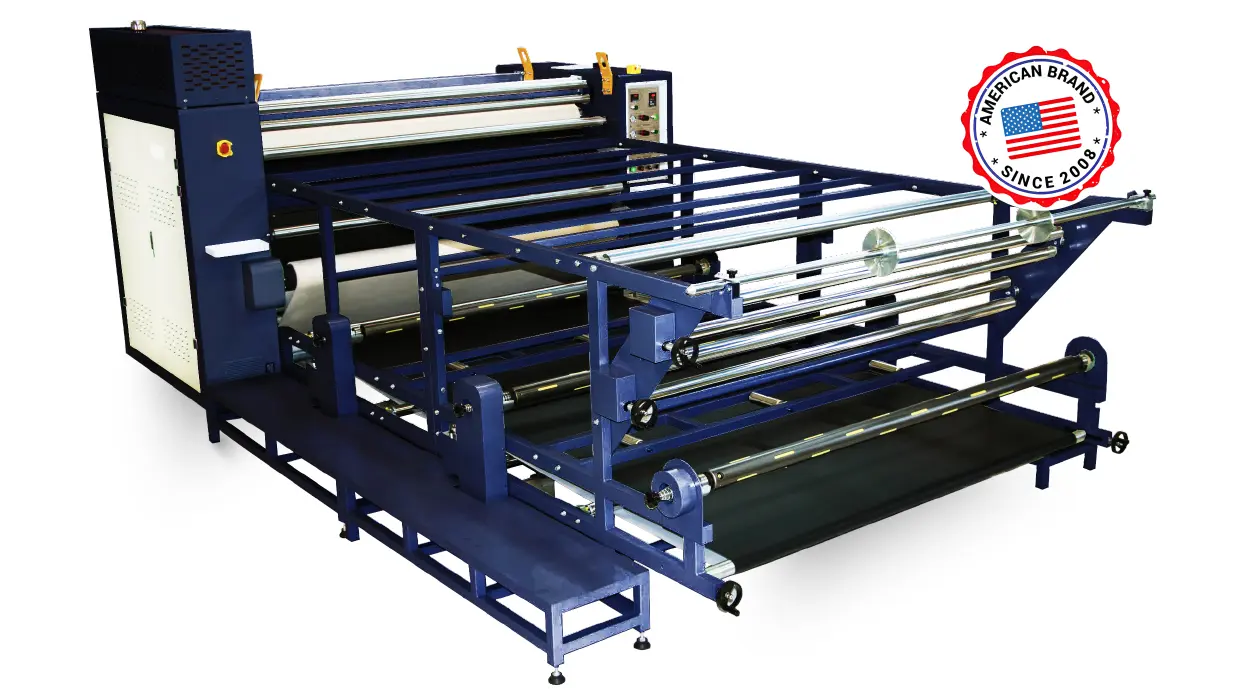

HOTA HTO 820-1900 PFL
The display machine is new improved model. The designer and technicians made thousands of trials to decide the present appearance. Blue frame with dark grey doors, pure blue table coordinate the frame, which uniquely defined in the market. The color contrast fully display the transfer fabric. And PLC control make system detailed and increase cost performance.
It is an upgrade from 820 – 1900 PL, on the basis of the original function Blanket coverage of more than 70%, work efficiency increased by 20%. More efficient and energy efficient than conventional models.
Advantages :
External tank, you can check the oil level at any time.
Blanket automatic offset function.
Low pressure full fuel design: use rotary joint to connect the external tank. The solution is to release the pressure inside the roller and ensure that the oil roller is in a low pressure state.
Dual sensor design, over limit warning, protective blanket.
Specifications
| MODEL | HTO 820-1900 PFL |
|---|---|
| Diameter of Cylinder | 820 |
| Transfer Width (mm) | 1850 |
| Transfer Speed (m/min) | 2.5 – 6 M / Min |
| Energy Consumption (KW) | 56 |
| Work Table /M | 2 – 3.5 M |
| Start Time /Min | 45 – 60 |
| Temperature /°C | 0 – 230 |
| Power Supply | 380V 3 phase |
| Machine Nett Weight / KG |
3200 Kg |
| Package Size /mm | 3200*1900*2330 |
