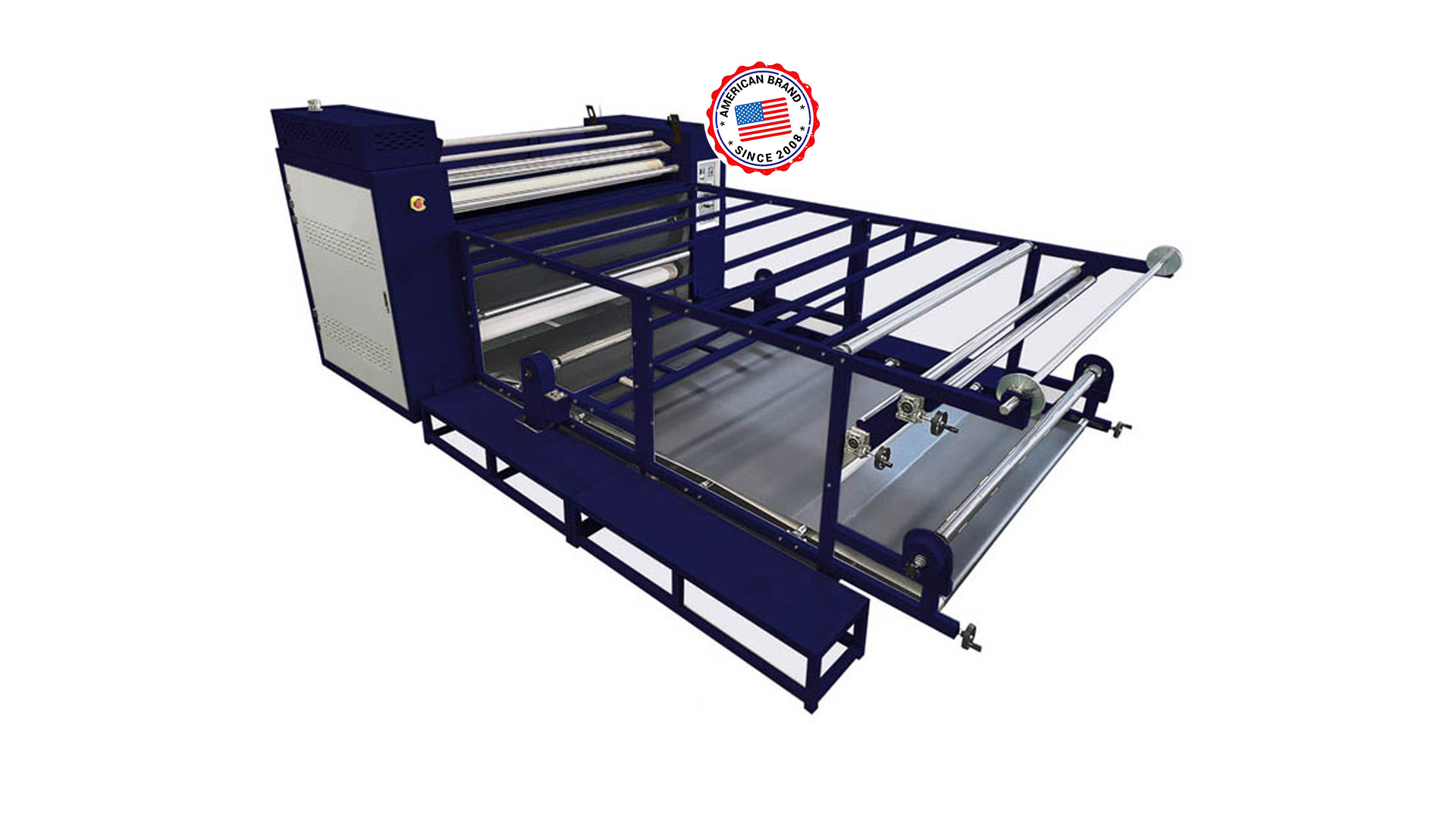

HOTA HTO 620-1900 PL

The display machine is new improved model. The designer and technicians made thousands of trials to decide the present appearance. Blue frame with dark grey doors, pure blue table coordinate the frame, which uniquely defined in the market. The color contrast fully display the transfer fabric. And PLC control make system detailed and increase cost performance.

Products are designed with full oil. Automatic adjust of the blanked eliminates the need for Frequent manual adjustment. Traditional lengthening platform, easy to use and simple to operate, use in rolls to rolls, piece to piece and other needs. Can be installed according to customer needs, separate take up system for fabric.

Advantages :

External tank, you can check the oil level at any time.

Blanket automatic offset function.

Low pressure full fuel design: use rotary joint to connect the external tank. The solution is to release the pressure inside the roller and ensure that the oil roller is in a low pressure state.

Dual sensor design, over limit warning, protective blanket.

h

Specifications

MODEL HTO 620-1900 PL
Diameter of Cylinder 620
Transfer Width (mm) 1850
Transfer Speed (m/min) 1,5 – 3,5 M / Min
Energy Consumption (KW) 36
Work Table /M 2 – 5 M
Start Time /Min 45 – 60
Temperature /°C 0 – 230
Power Supply 380V 3 phase
Machine Nett Weight / KG
2500 Kg
Package Size /mm 3100*1540*2030
*Untuk keperluan pengembangan, spesifikasi dapat berubah sewaktu-waktu.
