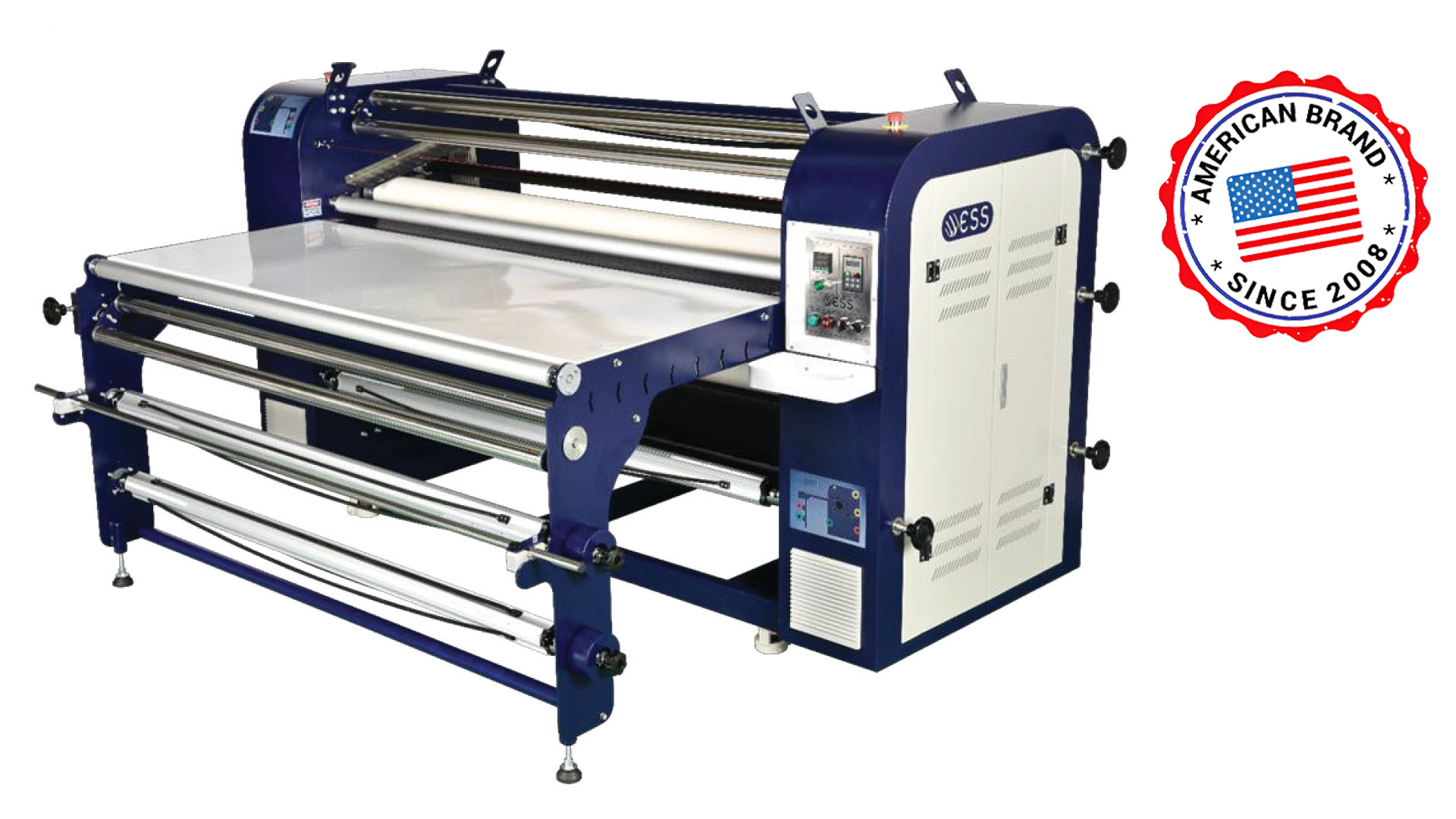

HOTA HTO 220-1900 Plus
A robust and flexible solution for roll-to-roll and piece-by-piece applications, HT Series rotary heat transfer machines are designed for the textile industry. This series comes in a variety of configurations, with drum diameters ranging from 9 to 17 inches and a large transfer area of 67 to 87 inches. Featuring a PLC and optional touch screen, this advanced calibration system provides comfort, security, and energy efficiency.
It is prepared to ensure continuous production in the sublimation line.
- Automation of daily work through the on-o scheduling system.
- Steel cylinder with Teon surface to prevent rust and maintain uniform temperature.
- Eective, advanced and economical heating system.
- Industrial heating system with thermal oil.
- LCD touch screen.
- Password to enter special options on the LCD panel.
- Sublimated fabric meter counter, congured from the LCD panel with the option to reset the value.
- Speed controller for cylinder rotation through PLC.
- Machine controlled by PLC, SIEMENS brand.
- PLC-programmable digital temperature controller.
- Automatic blanket position correction system controlled by PLC.
- The additional tension roller for the blanket is driven by a pneumatic system controlled by the PLC.
- Pneumatic tensioning system for sublimation paper controlled by PLC.
- Oil level indicator to ensure the amount of oil in the cylinder.
- Independent control system on each roller to collect the used material.
- Designed for continuous roll sublimation and item sublimation.
- Option to change the rotation in the cylinder movement.
- Blanket protection alarm through limit sensors.
- Emergency stop device.
- Five tension rollers for the blanket. One of the rollers is driven by a pneumatic system and controlled by PLC.
- Work table for item-to-item applications.
- Air system for protection paper.
- Electrical protection system for power outages.
- Cover to add smoke extractor. (Optional with additional charge.
Specifications
| Model | HTO 220 – 1900 Plus |
| Transfer width | 1900 mm |
| Cylinder diameter | 220 mm |
| Productivity | 0.1 – 2.5 M / Min |
| Principle of heating | Conductive oil heating |
| Transfer mechanism | Preasure – bearing |
| Start time | 45 min |
| Net weight | 950 kg |
| Gross weight | 1000 kg |
| Power | 9 KW 380V (3 Pass) |
| Transfer temperature | 180 – 230 degree |
| Display Sistem (Options) | |
| With automatic alignment system |
*Untuk keperluan pengembangan, spesifikasi dapat berubah sewaktu-waktu.
