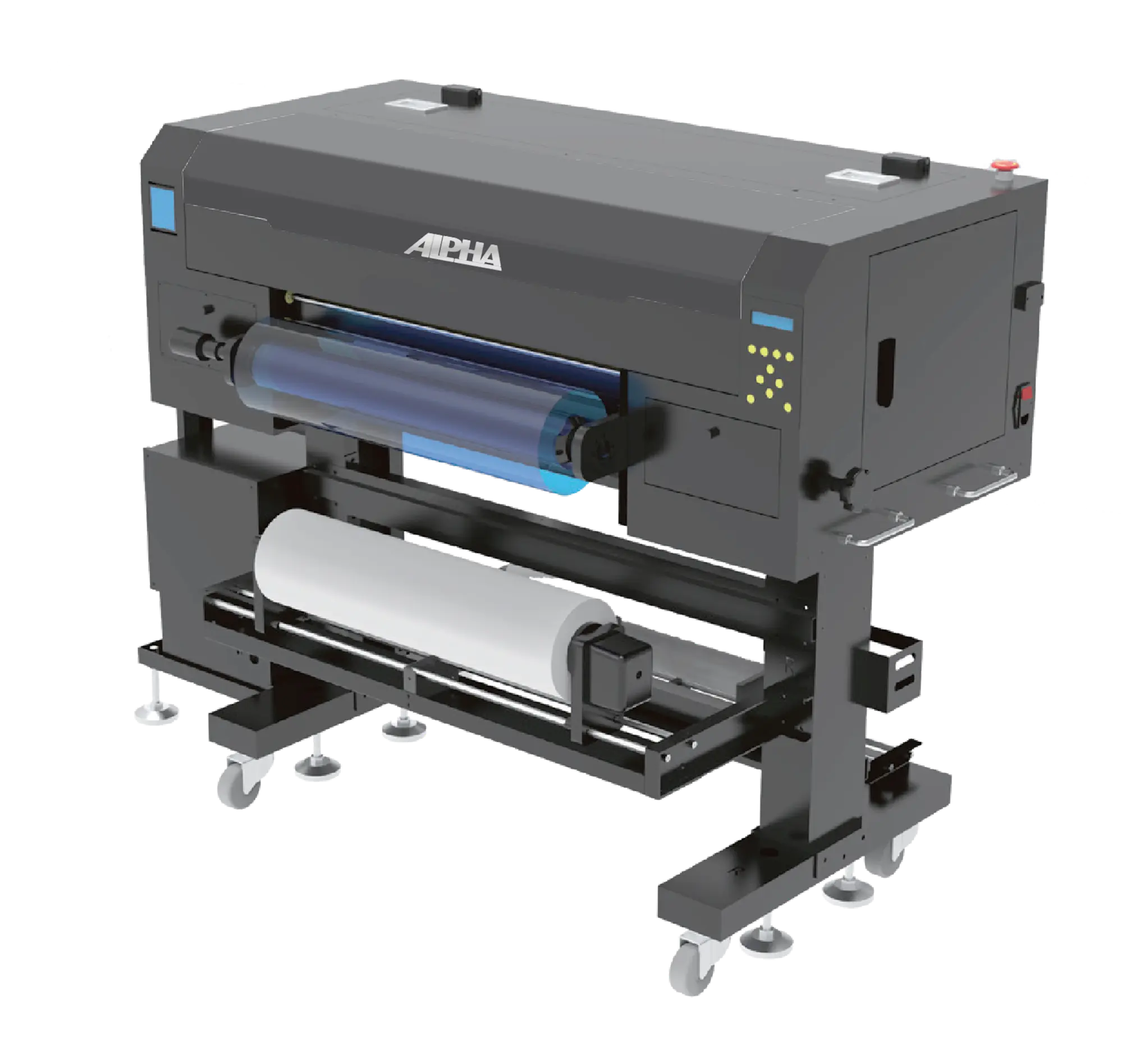

Mesin UV NT 740C 3D
Deskripsi Umum
NT 740C-3D adalah printer UV / DTF compact dengan lebar cetak hingga 600 mm, dirancang khusus untuk memberikan efek 3D dan emboss UV pada media kecil seperti case ponsel, helm, akrilik, dan dekor tersebar. Dilengkapi dengan 3 printhead Epson i3200, printer ini mampu menghasilkan detail tinggi dan gradien warna dengan presisi besar. Sistem kontrol tinta dan curing UV dioptimalkan agar cetakan memiliki kedalaman visual dan dimensi timbul yang realistis. Mesin ini juga mendukung pengaturan media multi-layer, menjadikannya solusi ideal untuk usaha dekoratif, branding, dan custom merchandise.
Pengaplikasian:
Jersey
Sticker UV
Texture Pad
3D Patchs
Trusted Certification by
Keunggulan Teknologi
• Teknologi Canggih
VSOT Technology
Variable Drop Size Control for Smooth Color Transitions
600 dpi Resolution
MEMS technology with compact nozzle arrangement
Multi-Layer Curing Control
Ensures Defined 3D Structure, Enables precise layer stacking and controlled curing times for sharp edges and uniform height in raised prints
Specifications
| Name | Alpha NT 740C 3D UV 3D Label Printer |
| Model | NT- 740C 3D |
| Printing Width | <600mm |
| Printhead | Epson i3200 – U1HD*1pcs |
| Printing Speed | 8Pass 0.3-0.8m² /h 12Pass 0.2-0.7m² /h |
| Printing Resolution | 8Pass 720*2400dpi 12Pass:720*3600dpi |
| Ink Configuration | CMYK+White+Varnish |
| Applicable media | 3D Film |
| Ink Type | UV Ink |
| RIP Sofware | Maintop/PP/RIIN/Devstudio |
| Ink Supply System | 1L ink bottle + white ink circulation + stirring |
| Operating System | Win7/Win10/Win11 |
| Ink Drying | Water Cooling (water circulation) |
| Platform Suction | Adjustable |
| Print Interface | Network Interface |
| Winding Function | Automaticinductive Winding |
| Temperature/Humadiry | Temperature: 15-30°C, Humidity: 35-65% |
| Power | 220V 14.5A 3200W |
| Size & Weight | Machine: 2256*1095*1597mm N.W 347kg Package: 2650*1140*846mm G.W 440kg |
