DTG
100% Programmed, developed, conceived and manufactured by our R&D team.
Now we’re all ready for your upgrade.

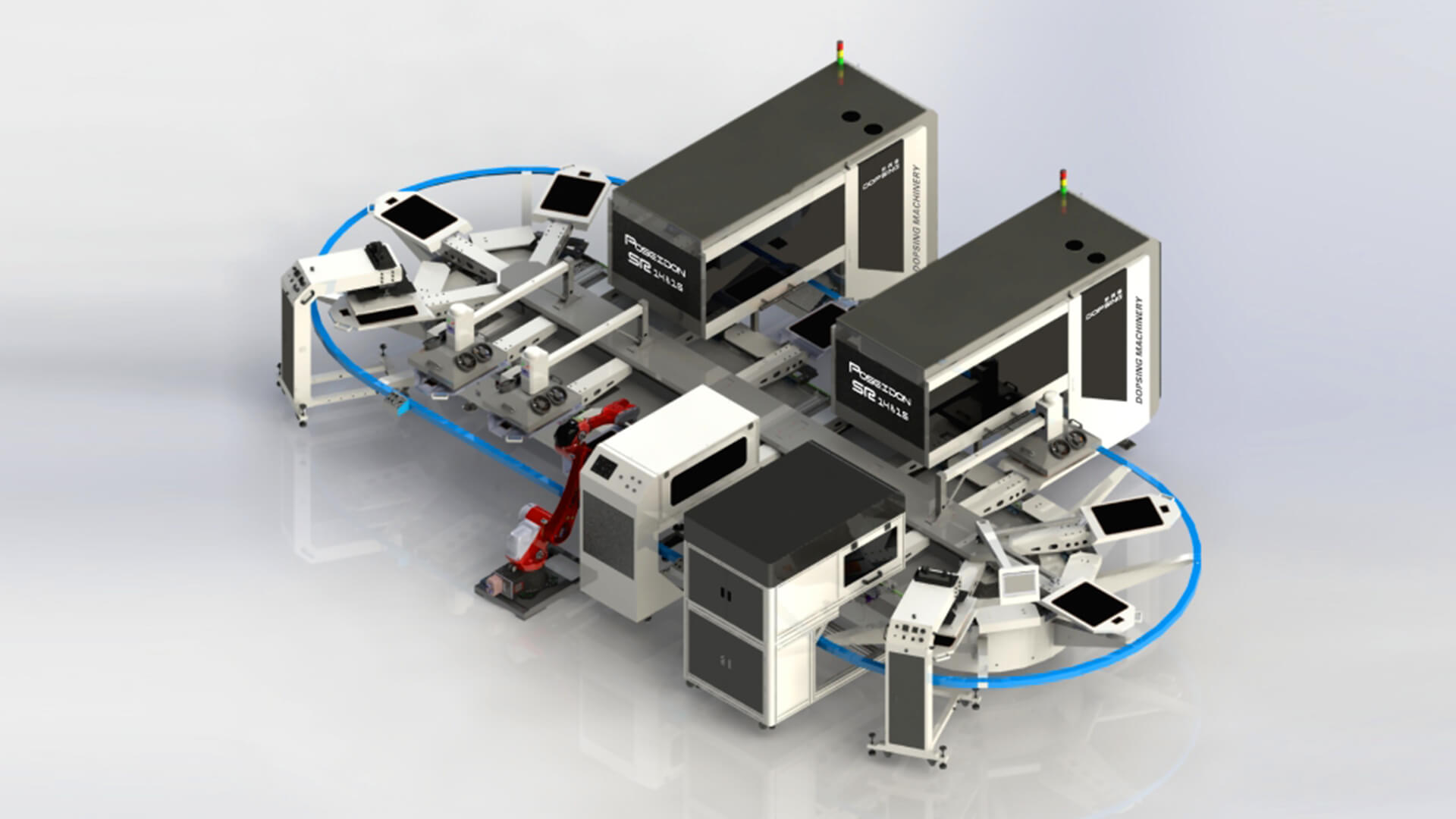

Poseidon DTG printer
It is engineered for professional high-speed industrial t-shirt and garment printing machine.
Output of up to 250 garments per hour. Nicely Breathable, perfect washing fastness, brightness, saturation, and preserving contrast of printing on the fabric. Lowest production and maintenance cost on the market.
Specifications
| Equipment model | Poseidon SR1424 | Poseidon SR1416 |
| Number of printhead | Starfire = 14 Ricoh G6 = 24 | Starfire = 14 Ricoh G6 = 16 |
| Colors | W+CMYK+RG | W+CMYK |
| Resolution of printing | 4 pass 635×1200 dpi 6 pass 635×1800 dpi 8 pass 635×2400 dpi | 4 pass 635×1200 dpi 6 pass 635×1800 dpi 8 pass 635×2400 dpi |
| RIP Software | PhotoPrint/NeoStampa(Inedit) | PhotoPrint/NeoStampa(Inedit) |
| Maximum printing size | 420×480 mm or 16”*19” | 420×480 mm or 16”*19” |
| Maximum thickness of medium | 20mm | 20mm |
| Ink supply system | Dual circulation and negative pressure system | Dual circulation and negative pressure system |
| Ink capacity | 5L /each color | 5L /each color |
| Maximum speed of printing | 250pcs/hr | 250pcs/hr |
| Working Environment | Temperature 20-30℃/ Humidity 55-70% | Temperature 20-30℃/ Humidity 55-70% |
| Physical Dimension | L8750*W5000*H1950MM, Weight:4500KGS | L8750*W5000*H1950MM, Weight:4500KGS |
*Specifications are subject to change without notice.
