DA 18FS Hybrid
Ultra-cost-effective for high-volume fabric printing: Rotary screen online sizing + digital printing+ flat screen printing solution 1080㎡/h | 64 Kyocera Print Heads | 1,800 DPI For Cotton, linen, silk, nylon, polyester, etc
Rp0

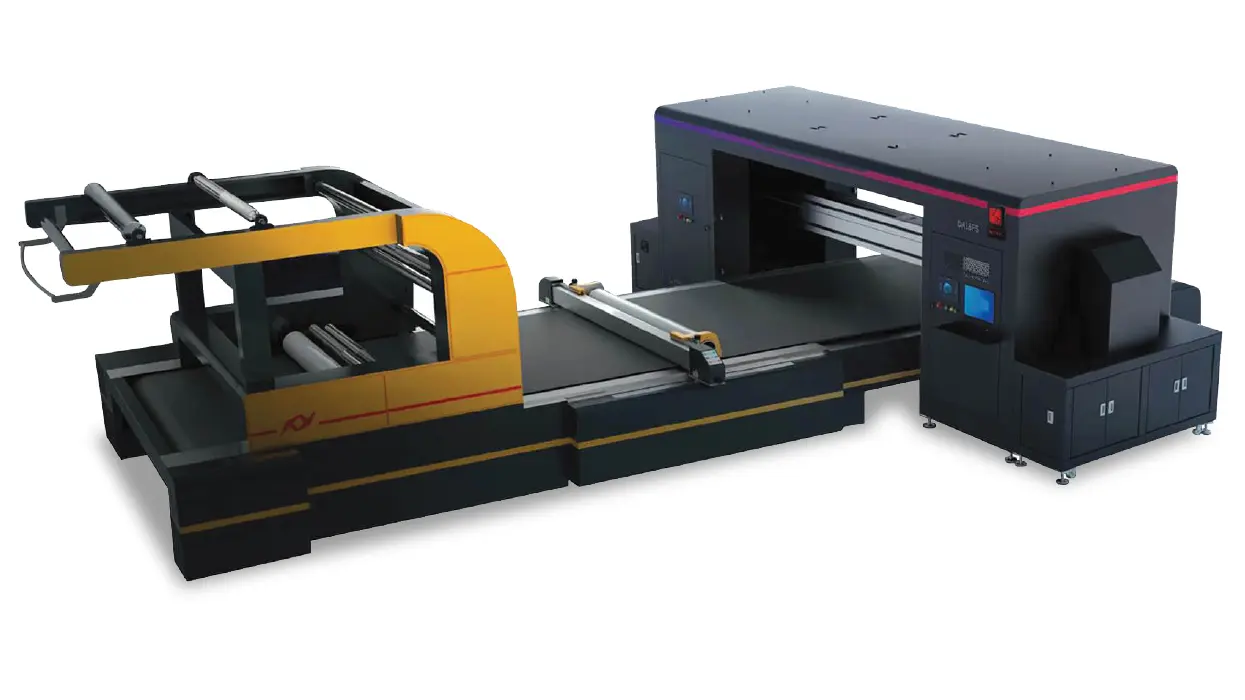

Online Sizing Flat Bed Screen + Digital Textile Printer
64 Kyocera industrail print heads,print speed up to 1080㎡/h (@2pass)
High efficiency, low cost, flexible combination of multiple processes to shape the excellent quality of printing, ultra-high cost-effective to meet the needs of high-volume printing production.
Features:
- Perfectly compatible: the self-developed control system is perfectly compatible with flat bed screen models
- Online sizing technology: realisation of hybrid technologies and process combinations
- Wet paste process: Reduced ink usage, good penetration, vibrant colours
Application:
Online sizing technology: realisation of hybrid technologies and process combinations
DA18FS Hybrid series online sizing flat bed screen digital textile printing machine, using high-speed digital textile printing technology equipped with a mature online sizing flatbed screen machine.Through the special combination and control system, the combined systems of digital textile printing, flat bed screen and online sizing mechanism work in perfect coordination, giving full play to the advantages of each system, maximising production capacity, and adapting to high-volume and high-quality printing production. Special or customised processes can also be realised using flat bed screens.
Wet paste process: Reduced ink usage, good penetration, vibrant colours
The use of mature “wet” printing technology, the best colour penetration after the application of wet paste, ink permeability enhancement, reduce the use of ink at the same time, improve ink penetration, colour uniformity and fullness, improve colour saturation and ink colouring rate.
Perfectly compatible: the self-developed control system is perfectly compatible with flat bed screen models
HPRT’s self-developed control system, integrated design of the machine base, tension-free uninterrupted fabric feeding mechanism, sizing and digital automatic register alignment, tension-free drying, and other system combinations run smoothly, paving the way for high-volume printing production.
Perfect detail experience
Circular bed screen online sizing + Digital textile printing + Flat bed screen mixing process
Circular bed screen online sizing, Without any rough printing spots, No jitters, Uniform sizing, No splicing defects, Full colour penetration, Brightly coloured
According to the customer’s needs, add flat bed screen to achieve special Technological combinations
High-speed digital printing with multiple printhead combinations
Freedom of equipment combination and high efficiency
Wet base paste improves colour saturation, increases colour uptake and reduces ink consumption
Specifications
| Model | DA 18FS Hybrid | |
| Name | Online Sizing Flat Bed Screen+Digital Textile Printer | |
| Print Head | Kyocera Printheads 64pcs | |
| Max Effective Printing Width (mm) | 1800 | |
| Max Fabric Feeding Width (mm) | 2000 | |
| Printing Speed (m2/hr) (Selection of model based on client needs) |
High Speed Model 1 @508*600dpi | 1pass: 2160 High Speed Model 2 @600*600dpi | 1pass: 1920 Normal Speed Model 1 @508*1200dpi | 2pass: 1080 Normal Speed Model 2 @600*1200dpi | 2pass: 960 Quality Model 1 @508*1800dpi | 3pass: 720 Quality Model 2 @600*1800dpi | 3pass: 640 |
|
| Ink Types | Reactive, acid, pigment, disperse, high temperature disperse | |
| Ink Colours | 8 colours: C, M, Y, K, O, B, R, G | |
| Print Media | Cotton, linen, silk, nylon, polyester, blends, elastic fabrics and new fibre woven and knitted fabrics | |
| Ink supply system and Degassing system | Automatic ink supply system, automatic degassing and automatic negative pressure system | |
| Printhead Cleaning & Maintenance | Automatic cleaning and wethold system | |
| Height Limit Detection and Deviation Rectification | Automatic detection of system with medium exceeding height limits Adjustable belt deviation rectification system | |
| Operation Interface | Industrial Touch Screen Control | |
| RIP System | HPRT RIP, Neostampa | |
| Machine Size: L*W*H (mm) | 6800*2000*2400 (Digital textile printer only, not including flat bed screen machine) |
|
| Weight (Kg) | 4000 (Digital textile printer only, not including flat bed screen machine) | |
| Power (Kw) | Printer 9KW (Digital textile printer only, not including flat bed screen machine) |
|
| Power Supply Requirements | AC380V | three-phase, five-wire system | 18A(9KW) | 50Hz/60Hz (Digital textile printer only, not including flat bed screen machine) |
|
| Air Supply Requirements | 0.6MPa | 1m³/hr (Dry, oil-free, no vapour) | |
| Working Temperature | 20~30℃ | |
| Operating Humidity | 45%-75% (No condensate generation) | |
| Certification | OEKO-TEX AATCC,CE | |
